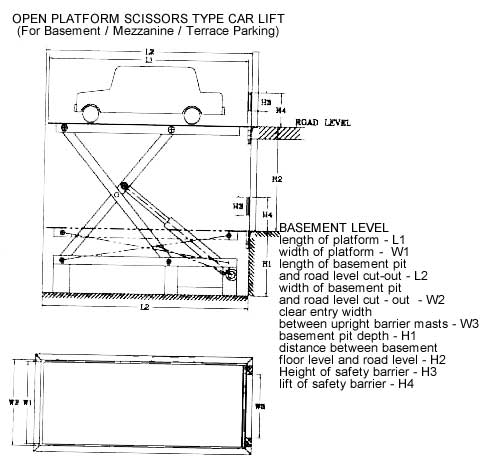

OPEN PLATFORM SCISSORS TYPE CAR LIFT
(For Basement / Mezzanine / Terrace Parking )


Model                                                           CRL 2500/10

Capacity                                                        2500 Kg

Length of Platform, L1                                    5625

Width of Platform,W1                                    2775

Length of Basement Pit/
Road Level Cut-Out, L2                                5850*

Width of Basement Pit/
Road Level Cut-Out, L2                                2850*

Clear Entry Width between uprigt Barrier
Masts, W3                                                    2450

Basement Pit Depth, H1                                915*

Level difference between
Basement Floor Level and Road Level
(Lift), H2                                                      3050*

Height of Safety Barrier, H3                          150

Lift of Safety Barrier,H4                                750

Electrohydraulic Power Pack                        App.750 L x 500 w x 100 Ht
(To be installed in the Basement
 outside the pit)

Electric Control Panel                                   App.500 W x 225 D x 750 Ht
(To be wall mounted in the basement
 near the power pack)

* After finish plastering/finish flooring.

    . Power pack and Control Panel not shown in the drawing.
    . Tentative dimensions. To be matched with actual site measurements and to
      be altered if required
    . Entry/exit barriers at the Road Level and in the Basement can be on opposite
      ends if required.
    . Barriers on both ends of the platform at the Road Level and/or in the Basement
      available if required.
    . Duplex model with higher lift and three landing stations available for two tier parking.
      Details on request.
    . Alternative capacities and dimensions available. Details on request.

     --------------------------------------------------------------------------------------------------------------------
