          * DRUM HANDLING EQUIPMENTS

           All the drum handling equipment are designed for standard 205 litres
           m.s. drum. However, most can be adopted for other drums.

           * A. Drum Trolley
                  * Three wheeled trolley for inclined handling of closed top or partially
                     filled open top drums.
                  * Self-picking - self-deposition.
                  * One man operation.

            B. Drum Organizer and Stacker - DOSt
                   * Picks up drum vertically off the floor or pallet, transports to destination,
                     lifts to the required height and deposits where required.
                   * Can handle open drums, hazardous/high temperature liquids, etc
                      without spillage.
                   * Can stack drums vertically one above the other without the use
                      of pallets.
                   * Can place drums on mezzanines, catwalks, platform, etc.
                   * One man, safe operation.
                   * Available with electrohydraulic, flameproof electrohydraulic,
                      battery powered lift and manual hydraulic lift models.
                   * GMP - stainless Steel models available.
                   * 250 Kg, 350 Kg and 500 Kg capacity with lift upto 4 meters.
                   * DOSt - the most user-friendly drum stacker.



C. High level Rear Dumper
                    * Receives drum - brought by a drum trolley - at ground level, locks in
                    position by quick action clamps, lift upto predetermined receiving vessel
                    height and automatically tilts tom the rear for emptying the contents into
                    the receiving vessel.
                    * Electrohydraulic operation with quick cycle time.
                    * Ideal for charging a number of drums in the same receiving vessel in
                    quick succession.
                    * Stationary or mobile unit to serve a number of receiving vessels of the
                    same height.
                    * 250 kg., 350 kg and 500 kg capacities with dumping level upto 4 meters.
                    * Tilting angle 40° between drum axis and horizontal.
                    * Stainless Steel pouring lip or full stainless steel GMP models available.



                                     HIGH LEVEL FRONT LOADER       HIGH LEVEL FRONT LOADER

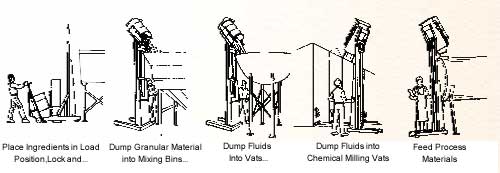

                  D. High Level Front Dumper
                    * picks drum off the floor or pallet by clamping in half opening clam shell
                      type drum cradle, lift above the receiving port height, moves over the
                      receiving port and rotates the drum to empty the contents.
                    * Electrohydraulic operation with quick cycle time.
                    * Drum can tilt upside down through 180° Can be held tilted at any angle.
                    * Universal application. Can serve a number of receiving vessels with
                      varying heights.
                    * 250 kg, 350 kg and 500 kg capacities with dumping level upto 4 meters
                      with telescopic masts.
                   * No pouring lips to minimize contamination.
                   * Stainless Steel GMP models available.


DRUM TROLLEY




Drum Organiser & Stacker ( DDST )



LOW LEVEL REAR DUMPER

HIGH LEVEL REAR DUMPER
















     --------------------------------------------------------------------------------------------------------------------
